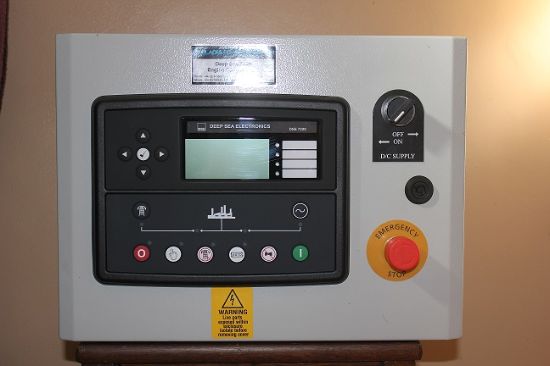

Blades Power Generation Basic Remote Start, Generator Control Panel The Remote Start Generator control panel using a DSE 7220 is used For generator control with a two wire start facility for a ATS Panel Mounted all into a 300 High 300 Wide 200 Deep All Steel Enclosure.
Manufacturer part number: BRS1
Manufacturer: Blades Power Generation

Please State if you require 12v dc or 24v dc.

£594.00 excl tax

PRODUCT HIGHLIGHTS

Large back-lit text display.

Display information to the operator in a clear and concise format.

3-phase generator and mains (utility) sensing.

Provides true generator and mains (utility) sensing.

Power monitoring (kW h, kV Ar, kV Ah, kV Ar h).

Provides clear accurate power measurement information.

Configurable inputs/outputs (6/8).

Provides multiple installation options.

CAN and magnetic pick-up sensing.

Makes the module ideal for electronic and standard engine applications.

Fuel usage monitor and low level alarms.

Tracks the amount of fuel being used and sounds an alarm if over-under fuel use is detected.

Tier 4 CAN engine support.

Ensures the control module can be used with the latest in modern electronic engine technology.

Manual/automatic load transfer.

Ensures the load is transferred automatically between mains (utility) and generator power.

Configurable display languages.

Ensures the control module is suitable for worldwide use.

Power save mode.

Reduces the power usage within system batteries.

Integral PLC editor.

Ensures additional applications are easily integrated into the system.

Flexible sender inputs.

DSE Configuration Suite PC Software.

Provides complete user-friendly configuration and easy-to-use high-level system control & monitoring.

Configurable event log (100).

Provides access to historical alarms and operational status.

Load switching, load shedding & dummy load outputs.

Allows load options and dummy load requirements to be independently controlled.

DC SUPPLY

CONTINUOUS VOLTAGE RATING

8 V to 35 V Continuous

CRANKING DROPOUTS
Able to survive 0 V for 50 mS, providing supply was at least 10 V before dropout and supply recovers to 5 V. This is achieved without the need for internal batteries. LEDs and backlight will not be maintained during cranking.

MAXIMUM OPERATING CURRENT
340 mA at 12 V, 160 mA at 24 V

MAXIMUM STANDBY CURRENT
160 mA at 12 V, 80 mA at 24 V

CHARGE FAIL/EXCITATION RANGE
0 V to 35 V

MAINS (UTILITY)

VOLTAGE RANGE
15 V - 333 V AC (L-N)

FREQUENCY RANGE
3.5 Hz to 75 Hz

OUTPUTS

OUTPUT A (FUEL)
15 A DC at supply voltage

OUTPUT B (START)
15 A DC at supply voltage

OUTPUTS C & D
8 A 250 V (Volt free)

AUXILIARY OUTPUTS E,F,G,H
2 A DC at supply voltage

GENERATOR

VOLTAGE RANGE
15 V - 333 V AC (L-N)

FREQUENCY RANGE
3.5 Hz to 75 Hz

MAGNETIC PICK UP

VOLTAGE RANGE
+/- 0.5 V to 70 V

FREQUENCY RANGE
10,000 Hz (max)



PRODUCT HIGHLIGHTS

Large back-lit text display.

Display information to the operator in a clear and concise format.

3-phase generator and mains (utility) sensing.

Provides true generator and mains (utility) sensing.

Power monitoring (kW h, kV Ar, kV Ah, kV Ar h).

Provides clear accurate power measurement information.

Configurable inputs/outputs (6/8).

Provides multiple installation options.

CAN and magnetic pick-up sensing.

Makes the module ideal for electronic and standard engine applications.

Fuel usage monitor and low level alarms.

Tracks the amount of fuel being used and sounds an alarm if over-under fuel use is detected.

Tier 4 CAN engine support.

Ensures the control module can be used with the latest in modern electronic engine technology.

Manual/automatic load transfer.

Ensures the load is transferred automatically between mains (utility) and generator power.

Configurable display languages.

Ensures the control module is suitable for worldwide use.

Power save mode.

Reduces the power usage within system batteries.

Integral PLC editor.

Ensures additional applications are easily integrated into the system.

Flexible sender inputs.

DSE Configuration Suite PC Software.

Provides complete user-friendly configuration and easy-to-use high-level system control & monitoring.

Configurable event log (100).

Provides access to historical alarms and operational status.

Load switching, load shedding & dummy load outputs.

Allows load options and dummy load requirements to be independently controlled.

DC SUPPLY

CONTINUOUS VOLTAGE RATING

8 V to 35 V Continuous

CRANKING DROPOUTS
Able to survive 0 V for 50 mS, providing supply was at least 10 V before dropout and supply recovers to 5 V. This is achieved without the need for internal batteries. LEDs and backlight will not be maintained during cranking.

MAXIMUM OPERATING CURRENT
340 mA at 12 V, 160 mA at 24 V

MAXIMUM STANDBY CURRENT
160 mA at 12 V, 80 mA at 24 V

CHARGE FAIL/EXCITATION RANGE
0 V to 35 V

MAINS (UTILITY)

VOLTAGE RANGE
15 V - 333 V AC (L-N)

FREQUENCY RANGE
3.5 Hz to 75 Hz

OUTPUTS

OUTPUT A (FUEL)
15 A DC at supply voltage

OUTPUT B (START)
15 A DC at supply voltage

OUTPUTS C & D
8 A 250 V (Volt free)

AUXILIARY OUTPUTS E,F,G,H
2 A DC at supply voltage

GENERATOR

VOLTAGE RANGE
15 V - 333 V AC (L-N)

FREQUENCY RANGE
3.5 Hz to 75 Hz

MAGNETIC PICK UP

VOLTAGE RANGE
+/- 0.5 V to 70 V

FREQUENCY RANGE
10,000 Hz (max)
