This Panel is for small compact installation.
Manufacturer part number: COM100MG
Manufacturer: Blades Power Generation

Generator ATS Communication Cable,

Suitable for The DHY Series Generator

£841.30 incl tax

Standard Product Specification for Mains to Generator Operation

2 x 3 Pole AC1 Rated Contactors, Electrically & Mechanically Interlocked “break before make”


Mains (Utility) – Delay On Load Timer ( Pre Set 10sec )( Adjustable 0.3 Sec – 30 Hrs )


Generator – Delay On Load Timer ( Pre Set 30sec ) ( Adjustable 0.3 Sec – 30 Hrs )


Set Rated Fuses for control circuit


Set Volt Free Contacts for remote Start Facility ( 2 Wire Start )



Deep-Sea - 12v 3A  Dc Battery Charger



Auto Test Facility Switch, Primary Mains Failure simulation



Mounted Within a 300 x 300W x 200D Steel Enclosure, with Top & Bottom Removable Gland Plates.
IP65 Rated RAL7032 With Lockable Door 1 Key Supplied & Wall Mounting Brackets

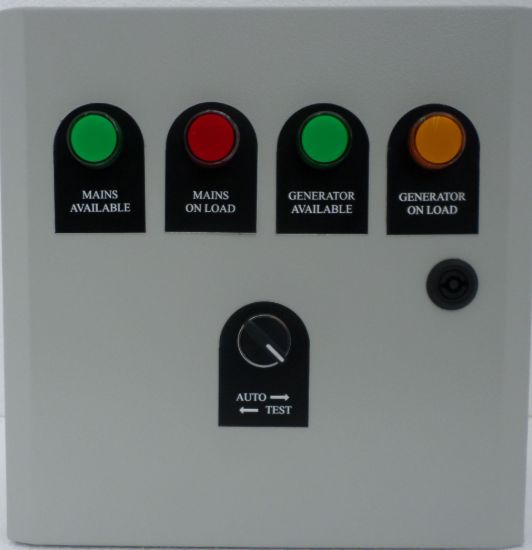

LED Indication
Mains Available (GREEN), Mains On Load (RED)
Generator Available (GREEN), Generator On Load (AMBER)





Standard Product Specification for Mains to Generator Operation

2 x 3 Pole AC1 Rated Contactors, Electrically & Mechanically Interlocked “break before make”


Mains (Utility) – Delay On Load Timer ( Pre Set 10sec )( Adjustable 0.3 Sec – 30 Hrs )


Generator – Delay On Load Timer ( Pre Set 30sec ) ( Adjustable 0.3 Sec – 30 Hrs )


Set Rated Fuses for control circuit


Set Volt Free Contacts for remote Start Facility ( 2 Wire Start )



Deep-Sea - 12v 3A  Dc Battery Charger



Auto Test Facility Switch, Primary Mains Failure simulation



Mounted Within a 300 x 300W x 200D Steel Enclosure, with Top & Bottom Removable Gland Plates.
IP65 Rated RAL7032 With Lockable Door 1 Key Supplied & Wall Mounting Brackets


LED Indication
Mains Available (GREEN), Mains On Load (RED)
Generator Available (GREEN), Generator On Load (AMBER)
