• For life safety ATS installations to BS8519:2010
• Compliant to BS60947-6
• Break-Before-Make operation
• Door interlocked pad lockable handles
• Fully load rated AC23A 415-690V
• Ingress protection IP55
Motorised Standard Operation
Switch default to Primary Supply When Available P1 – Indication Primary Available
When Primary Supply is available The TD1 Timer Will Time for 10s (Adjustable)
Then charge to P1 Indication Primary On Load
On Primary Failure This Will Close R1 Relay and call generator to start
If Supplied for MAINS to MAINS Operation, will See Supply & Charge to P0 Position
When Secondary Supply is available – Indication Secondary Available
The TD2 Timer Will Time for 20s (Adjustable) Then charge to P11 Indication Secondary On Load

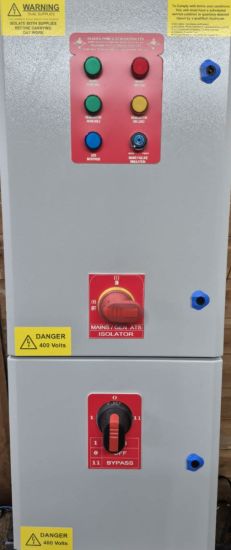

Motorised Bypass Operation Single Line Also Available With Dual line Bypass
On the manual switch labelled P1 - Primary – P2 - Secondary Switch From P1- or P2-Supply ( Dual Line )
On the manual switch labelled Bypass Switch From P1- Auto to P2-Bypass
This will then put the Primary- Secondary supply direct to the DP board
You can now Switch the 2 Position isolator to off & Work on the ATS Panel.
Standard LED Indication
Primary / Secondary Available (GREEN), Primary – Secondary On Load (RED)
ATS In Bypass ( BLUE )
