Hyundai DHY14KSE 1500rpm 14kVA Three Phase Diesel Generator
Manufacturer part number: DHY14KSE
Manufacturer: HYUNDAI
Call for pricing

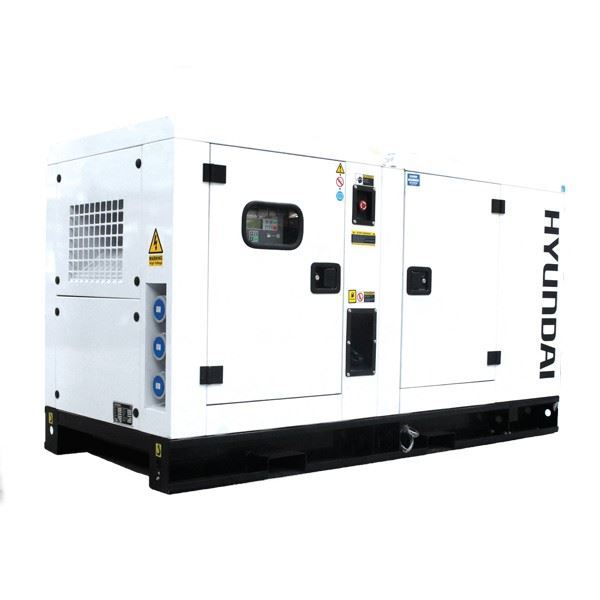

Hyundai DHY14KSE 1500rpm 14kVA Three Phase Diesel Generator



Hyundai's three-phase DHY14KSE has is a popular choice for workshop and business standby. Providing more power this generator will provide a reliable source of electricity in the event of a power failure, or in an off grid installation.

The large 77 litre tank can easily be filled from outside the weatherproof canopy and provides a long run time, enabling you to operate even if your competitors are not.

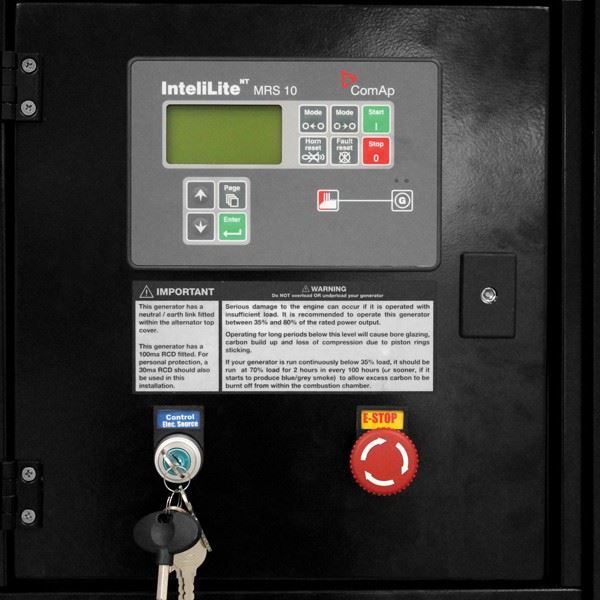

Fitted with easy to use controls, enables the generator to be operated in standalone mode, or alternatively fit an optional automatic transfer switch for peace of mind.

For detailed technical information on the Hyundai DHY14KSE 1500rpm 14kVA Three Phase Diesel Generator, please click on the Specifications tab above.

Specifications

Dimensions (mm)

Length 1900 x Width 900 x Height 1110

Rated Power (kW/kVA)

Oct-13

MAX. Power (kW/kVA)

Nov-14

Frequency

50

Voltage(s)

230, 400

Controller

IL-NT MRS 10

ATS Port

INCLUDED

Battery (Ah)

1x12V-60Ah

Fuel Capacity

77.5

Cooling Fluid Volume (L)

10

Fuel Consumption (l/h 50/100% loading)

2.2 / 4.2

Engine

HY480

Power Output (kW/1500rpm)

14

Rotate Speed

1500 RPM

Speed Regulation

MECHANICAL

Displacement (cc)

1809

Oil Capacity (L)

10

Alternator

AVR

Power Factor (Cosφ)

0.8

Low Oil Pressure

Yes

Block On Startup

Yes

Low Battery

Yes

Low Oil Level

Yes

Low Running On Engine

Yes

Emergency Stop

Yes

N.G. (kg.)

640

Noise @ 1m

92

Noise @ 7m

65

Capacity (units/container)

6/20GP;12/40GP;24/HQ



Hyundai DHY14KSE 1500rpm 14kVA Three Phase Diesel Generator



Hyundai's three-phase DHY14KSE has is a popular choice for workshop and business standby. Providing more power this generator will provide a reliable source of electricity in the event of a power failure, or in an off grid installation.

The large 77 litre tank can easily be filled from outside the weatherproof canopy and provides a long run time, enabling you to operate even if your competitors are not.

Fitted with easy to use controls, enables the generator to be operated in standalone mode, or alternatively fit an optional automatic transfer switch for peace of mind.

For detailed technical information on the Hyundai DHY14KSE 1500rpm 14kVA Three Phase Diesel Generator, please click on the Specifications tab above.

Specifications

Dimensions (mm)

Length 1900 x Width 900 x Height 1110

Rated Power (kW/kVA)

Oct-13

MAX. Power (kW/kVA)

Nov-14

Frequency

50

Voltage(s)

230, 400

Controller

IL-NT MRS 10

ATS Port

INCLUDED

Battery (Ah)

1x12V-60Ah

Fuel Capacity

77.5

Cooling Fluid Volume (L)

10

Fuel Consumption (l/h 50/100% loading)

2.2 / 4.2

Engine

HY480

Power Output (kW/1500rpm)

14

Rotate Speed

1500 RPM

Speed Regulation

MECHANICAL

Displacement (cc)

1809

Oil Capacity (L)

10

Alternator

AVR

Power Factor (Cosφ)

0.8

Low Oil Pressure

Yes

Block On Startup

Yes

Low Battery

Yes

Low Oil Level

Yes

Low Running On Engine

Yes

Emergency Stop

Yes

N.G. (kg.)

640

Noise @ 1m

92

Noise @ 7m

65

Capacity (units/container)

6/20GP;12/40GP;24/HQ



Products specifications
Component Manufacture HYUNDAI
Requirement Industrial 3 Phase + N 415v
Fuel Diesel
Frame Arrangement Acoustic Canopy
KVA Rating 14 Kva
Amp Rating AC1 20 Amp
Products specifications
Component Manufacture HYUNDAI
Requirement Industrial 3 Phase + N 415v
Fuel Diesel
Frame Arrangement Acoustic Canopy
KVA Rating 14 Kva
Amp Rating AC1 20 Amp
