Hyundai DHY45KSE 1500rpm 45kVA Three Phase Diesel Generator
Manufacturer part number: DHY45KSE
Manufacturer: HYUNDAI
Call for pricing

Hyundai DHY45KSE 1500rpm 45kVA Three Phase Diesel Generator



The DHY45KSE provides reliable power in both prime and standby mode. Coupled with an Automatic Transfer Switch the generator can provide power whenever the mains fails.

The 1500 rpm diesel engine is built into a weather and sound proof canopy, enabling the generator to be fitted into a range of locations. For interior installations the exhaust can be fitted with ducting  allowing the safe extraction of fumes.

The control panel allows users to customise the usage parameters, and to monitor fuel and coolant levels.

For detailed technical information on the Hyundai DHY45KSE 1500rpm 45kVA Diesel Generator, please click on the Specifications tab above.

Specifications

Dimensions (mm)

Length 2200 x Width 950 x Height 1310

Rated Power (kW/kVA)

32 / 40

MAX. Power (kW/kVA)

33 / 45

Frequency

50

Voltage(s)

230, 400

Controller

MRS10 / Deepsea

ATS Port

INCLUDED

Battery (Ah)

1x12V-60Ah

Fuel Capacity

93

Cooling Fluid Volume (L)

25

Fuel Consumption (l/h 50/100% loading)

7.2 / 12.8

Engine

HY4105

Power Output (kW/1500rpm)

35

Rotate Speed

1500 RPM

Speed Regulation

MECHANICAL

Displacement (cc)

4100

Oil Capacity (L)

9

Alternator

AVR

Power Factor (Cosφ)

0.8

Voltage Regulation

AVR

Low Oil Pressure

Yes

Block On Startup

Yes

Low Battery

Yes

Low Oil Level

Yes

Low Running On Engine

Yes

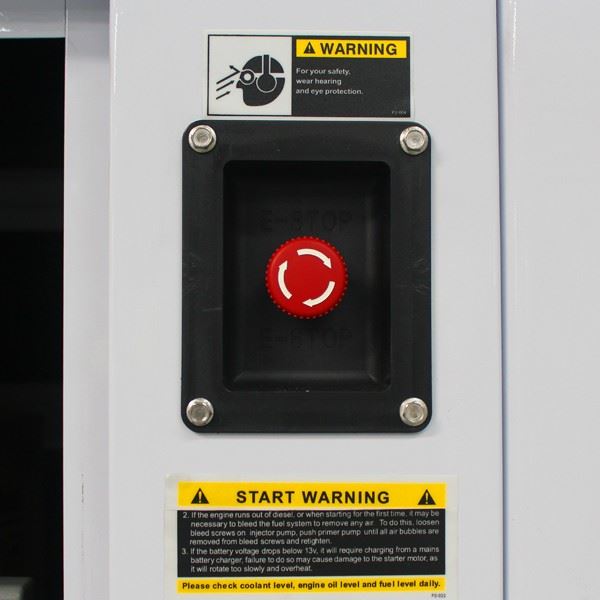

Emergency Stop

Yes

N.G. (kg.)

990

Noise @ 1m

92

Noise @ 7m

65



Hyundai DHY45KSE 1500rpm 45kVA Three Phase Diesel Generator



The DHY45KSE provides reliable power in both prime and standby mode. Coupled with an Automatic Transfer Switch the generator can provide power whenever the mains fails.

The 1500 rpm diesel engine is built into a weather and sound proof canopy, enabling the generator to be fitted into a range of locations. For interior installations the exhaust can be fitted with ducting  allowing the safe extraction of fumes.

The control panel allows users to customise the usage parameters, and to monitor fuel and coolant levels.

For detailed technical information on the Hyundai DHY45KSE 1500rpm 45kVA Diesel Generator, please click on the Specifications tab above.

Specifications

Dimensions (mm)

Length 2200 x Width 950 x Height 1310

Rated Power (kW/kVA)

32 / 40

MAX. Power (kW/kVA)

33 / 45

Frequency

50

Voltage(s)

230, 400

Controller

MRS10 / Deepsea

ATS Port

INCLUDED

Battery (Ah)

1x12V-60Ah

Fuel Capacity

93

Cooling Fluid Volume (L)

25

Fuel Consumption (l/h 50/100% loading)

7.2 / 12.8

Engine

HY4105

Power Output (kW/1500rpm)

35

Rotate Speed

1500 RPM

Speed Regulation

MECHANICAL

Displacement (cc)

4100

Oil Capacity (L)

9

Alternator

AVR

Power Factor (Cosφ)

0.8

Voltage Regulation

AVR

Low Oil Pressure

Yes

Block On Startup

Yes

Low Battery

Yes

Low Oil Level

Yes

Low Running On Engine

Yes

Emergency Stop

Yes

N.G. (kg.)

990

Noise @ 1m

92

Noise @ 7m

65



Products specifications
Component Manufacture HYUNDAI
Requirement Industrial 3 Phase + N 415v
Fuel Diesel
Frame Arrangement Acoustic Canopy
KVA Rating 45 Kva
Amp Rating AC1 63 Amp
Products specifications
Component Manufacture HYUNDAI
Requirement Industrial 3 Phase + N 415v
Fuel Diesel
Frame Arrangement Acoustic Canopy
KVA Rating 45 Kva
Amp Rating AC1 63 Amp
