Here At Blades Power we have a full range of Automatic Transfer Switches Manufactured In House Using Only UK Suppliers. They are built to the highest standard, all panels are fully tested and issued with a serial No. Every Panel is dispatched with a copy of the Electrical Schematic and test report + All Data sheets for each electrical internal part.
Manufacturer part number: ABB325MM
Delivery date: 3-5 Working Days
Manufacturer: Blades Power Generation

Please State Labelling required

£689.00 incl tax

Mains to Mains Automatic Transfer Switch.

Automatic switching between Primary Mains & Secondary Mains



3 Phase + Neutral 4 Pole (400V) Automatic Transfer Switch Also Known As an ATS Panel.

A phase failure relay is used for Mains / Primary voltage monitoring and offers Phase Failure & phase sequence Protection.



The Automatic Transfer Switch Control Panel has two-time control relays for on load delay. 1st Timer normally set to 10s and is used to control the Primary Mains on load / Restoration period, this controls the period the Primary Mains supply has to be healthy before engaging the Mains contactor. The 2nd Timer normally set for 15s controls the Secondary Mains contactor, On failure of the Primary / Mains supply,  The Secondary Mains 2nd timer will initiate. The Automatic Transfer Switch will monitor the Primary / Mains, as soon as the mains is restored it will drop the Secondary Mains contactor and initiates the 1st timer sequence, then automatically switches back to the Primary Mains supply,



Standard Full Spec 3P+N Automatic Transfer Switch

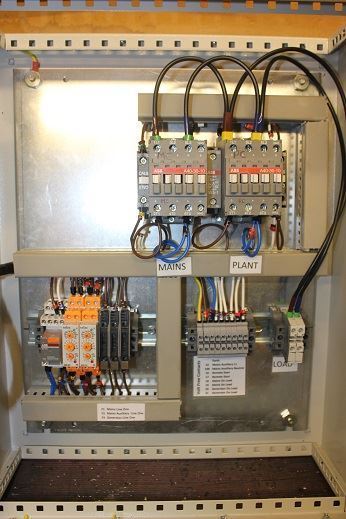

2 x 4 Pole AC1 Rated (690 V) 40 °C Contactors, Electrically & Mechanically Interlocked “break before make”

1 x Phase Failure Relay for mains monitoring.

1 x Primary & Secondary Delay On Load Timers.

1 x 240v Ac 10 Amp Auxiliary Supply From Primary Mains Supply L1

1 x 240v Ac 10 Amp Auxiliary Supply From Secondary Mains Supply L1

1 X Set Rated Fuses for control circuit

1 x Set of Primary Available Volt Free Contact N/c ( For BMS )

1 x Set of Primary On Load Volt Free Contact N/o ( For BMS )

1 x Set of Secondary On Load Volt Free Contact N/o ( For BMS )



Mains Failure Simulation Switch ( Auto Test ) (Option)

This is a Mains Simulation Test Switch that you can simulate a mains failure from the switch on the panel door.

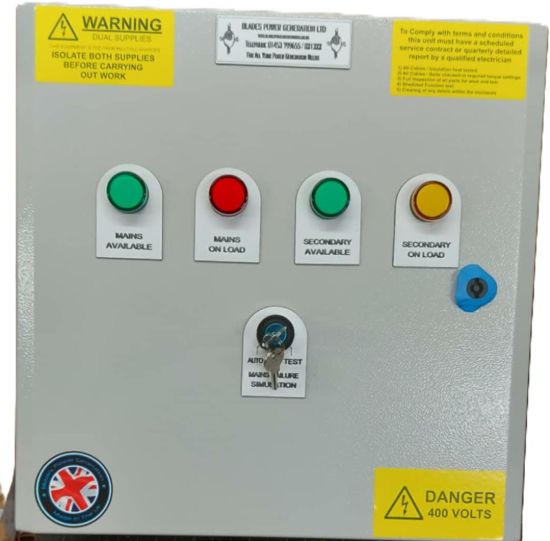

LED Indication

Primary Available (GREEN), Primary On Load (RED)

Secondary Available (GREEN), Secondary On Load (AMBER)



ABB - 25 Amp Enclosure:

All Mounted into a 400 High 400 Wide 200 Deep All Steel Enclosure, with  Removable Gland Plate.

IP65 Rated RAL7035 With Lockable Door, 1 Key Supplied & Wall Mounting Brackets

Cable entry standard is arranged for bottom entry with a direct connection into the contactors

Specification to EN 62208, EN 60529, IK10, EN 61439-1-2.





Assembled in the UK by Blades Power Generation Limited using parts conforming to EN60529, EN60947.

Provided with a 12-month warranty ( extended warranty available)

Mains to Mains Automatic Transfer Switch.

Automatic switching between Primary Mains & Secondary Mains



3 Phase + Neutral 4 Pole (400V) Automatic Transfer Switch Also Known As an ATS Panel.

A phase failure relay is used for Mains / Primary voltage monitoring and offers Phase Failure & phase sequence Protection.



The Automatic Transfer Switch Control Panel has two-time control relays for on load delay. 1st Timer normally set to 10s and is used to control the Primary Mains on load / Restoration period, this controls the period the Primary Mains supply has to be healthy before engaging the Mains contactor. The 2nd Timer normally set for 15s controls the Secondary Mains contactor, On failure of the Primary / Mains supply,  The Secondary Mains 2nd timer will initiate. The Automatic Transfer Switch will monitor the Primary / Mains, as soon as the mains is restored it will drop the Secondary Mains contactor and initiates the 1st timer sequence, then automatically switches back to the Primary Mains supply,



Standard Full Spec 3P+N Automatic Transfer Switch

2 x 4 Pole AC1 Rated (690 V) 40 °C Contactors, Electrically & Mechanically Interlocked “break before make”

1 x Phase Failure Relay for mains monitoring.

1 x Primary & Secondary Delay On Load Timers.

1 x 240v Ac 10 Amp Auxiliary Supply From Primary Mains Supply L1

1 x 240v Ac 10 Amp Auxiliary Supply From Secondary Mains Supply L1

1 X Set Rated Fuses for control circuit

1 x Set of Primary Available Volt Free Contact N/c ( For BMS )

1 x Set of Primary On Load Volt Free Contact N/o ( For BMS )

1 x Set of Secondary On Load Volt Free Contact N/o ( For BMS )



Mains Failure Simulation Switch ( Auto Test ) (Option)

This is a Mains Simulation Test Switch that you can simulate a mains failure from the switch on the panel door.



LED Indication

Primary Available (GREEN), Primary On Load (RED)

Secondary Available (GREEN), Secondary On Load (AMBER)



ABB - 25 Amp Enclosure:

All Mounted into a 400 High 400 Wide 200 Deep All Steel Enclosure, with  Removable Gland Plate.

IP65 Rated RAL7035 With Lockable Door, 1 Key Supplied & Wall Mounting Brackets

Cable entry standard is arranged for bottom entry with a direct connection into the contactors

Specification to EN 62208, EN 60529, IK10, EN 61439-1-2.





Assembled in the UK by Blades Power Generation Limited using parts conforming to EN60529, EN60947.

Provided with a 12-month warranty ( extended warranty available)

Products specifications
Component Manufacture ABB
IP65 All Steel Enclosure 400 High 400 Wide 200 Deep
Requirement Residential Single Phase 240v
Amp Rating 25 Amp
Products specifications
Component Manufacture ABB
IP65 All Steel Enclosure 400 High 400 Wide 200 Deep
Requirement Residential Single Phase 240v
Amp Rating 25 Amp
