Here At Blades Power we have a full range of Automatic Transfer Switches Manufactured In House Using Only UK Suppliers. They are built to the highest standard, all panels are fully tested and issued with a serial No. Every Panel is dispatched with a copy of the Electrical Schematic and test report + All Data sheets for each electrical internal part.
Manufacturer part number: ABB345MM
Delivery date: 3-5 Working Days
Manufacturer: Blades Power Generation

Please State Labelling required

£510.65 incl tax

Mains to Mains Automatic Transfer Switch.

Automatic switching between Primary Mains & Secondary Mains



3 Phase + Neutral 4 Pole (400V) Automatic Transfer Switch Also Known As an ATS Panel.

A phase failure relay is used for Mains / Primary voltage monitoring and offers Phase Failure & phase sequence Protection.



The Automatic Transfer Switch Control Panel has two-time control relays for on load delay. 1st Timer normally set to 10s and is used to control the Primary Mains on load / Restoration period, this controls the period the Primary Mains supply has to be healthy before engaging the Mains contactor. The 2nd Timer normally set for 15s controls the Secondary Mains contactor, On failure of the Primary / Mains supply,  The Secondary Mains 2nd timer will initiate. The Automatic Transfer Switch will monitor the Primary / Mains, as soon as the mains is restored it will drop the Secondary Mains contactor and initiates the 1st timer sequence, then automatically switches back to the Primary Mains supply,



Automatic Transfer Switch Full & Basic Specification Explained

Phase Failure / Phase Sequence Relay (Standard)

Mains – Primary On Load Delay Timer, user adjustable 0.3 Sec & 30 hours. ( Removed for Basic Spec )

10 Amp Auxiliary Output Terminals for Battery charger or other ( Removed for Basic Spec )

Secondary - On Load Delay Timer, user adjustable 0.3 Sec & 30 hours. (Standard)

Primary Auxiliary Contacts Terminals ( N/O Contact ) ( Removed for Basic Spec )

Secondary Auxiliary Contact Terminals ( N/O Contact ) ( Removed for Basic Spec )

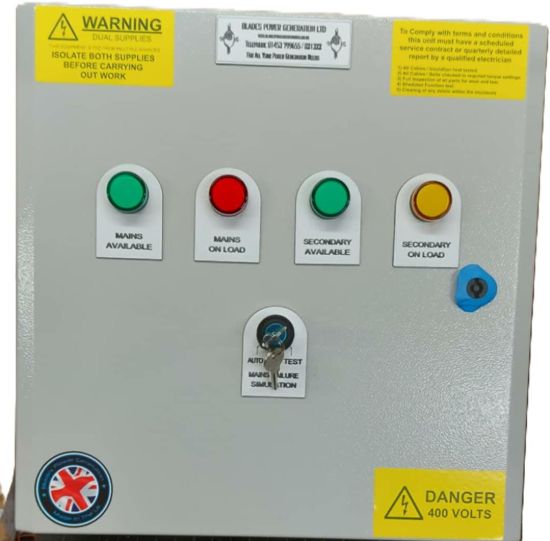

Mains Failure Simulation Switch ( Auto Test ) (Option)

This is a Mains Simulation Test Switch that you can simulate a mains failure from the switch on the panel door.

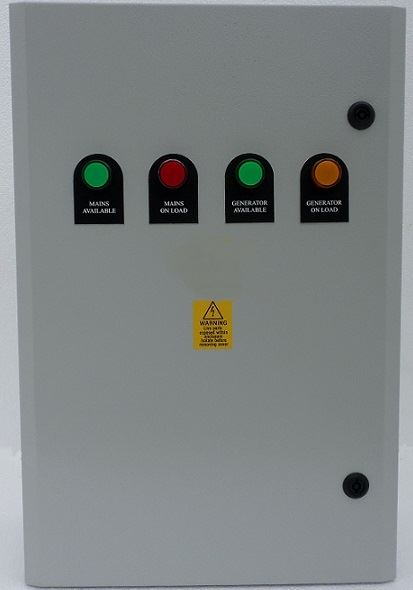

LED Indication Labels - Available & On Load Options

Mains / Generator, Primary / Secondary, Supply 1 / Supply 2

Any Other options available upon request

Example:

S1 Available ( Green  ) S1 On Load ( Red )

S2 Available ( Green  ) S2 On Load ( Yellow



Enclosure:

IP65 Mild Steel enclosure, Removable top & bottom gland plates

Single or Twin Door Lock system (This depends on cubical size)

Cable entry standard is arranged for bottom entry with a direct connection into the contactors

Specification to EN 62208, EN 60529, IK10, EN 61439-1-2.



Assembled in the UK by Blades Power Generation Limited using parts conforming to EN60529, EN60947.

Provided with a 12-month warranty ( extended warranty available)



Mains to Mains Automatic Transfer Switch.

Automatic switching between Primary Mains & Secondary Mains



3 Phase + Neutral 4 Pole (400V) Automatic Transfer Switch Also Known As an ATS Panel.

A phase failure relay is used for Mains / Primary voltage monitoring and offers Phase Failure & phase sequence Protection.



The Automatic Transfer Switch Control Panel has two-time control relays for on load delay. 1st Timer normally set to 10s and is used to control the Primary Mains on load / Restoration period, this controls the period the Primary Mains supply has to be healthy before engaging the Mains contactor. The 2nd Timer normally set for 15s controls the Secondary Mains contactor, On failure of the Primary / Mains supply,  The Secondary Mains 2nd timer will initiate. The Automatic Transfer Switch will monitor the Primary / Mains, as soon as the mains is restored it will drop the Secondary Mains contactor and initiates the 1st timer sequence, then automatically switches back to the Primary Mains supply,



Automatic Transfer Switch Full & Basic Specification Explained

Phase Failure / Phase Sequence Relay (Standard)

Mains – Primary On Load Delay Timer, user adjustable 0.3 Sec & 30 hours. ( Removed for Basic Spec )

10 Amp Auxiliary Output Terminals for Battery charger or other ( Removed for Basic Spec )

Secondary - On Load Delay Timer, user adjustable 0.3 Sec & 30 hours. (Standard)

Primary Auxiliary Contacts Terminals ( N/O Contact ) ( Removed for Basic Spec )

Secondary Auxiliary Contact Terminals ( N/O Contact ) ( Removed for Basic Spec )



Mains Failure Simulation Switch ( Auto Test ) (Option)

This is a Mains Simulation Test Switch that you can simulate a mains failure from the switch on the panel door.



LED Indication Labels - Available & On Load Options

Mains / Generator, Primary / Secondary, Supply 1 / Supply 2

Any Other options available upon request

Example:

S1 Available ( Green  ) S1 On Load ( Red )

S2 Available ( Green  ) S2 On Load ( Yellow



Enclosure:

IP65 Mild Steel enclosure, Removable top & bottom gland plates

Single or Twin Door Lock system (This depends on cubical size)

Cable entry standard is arranged for bottom entry with a direct connection into the contactors

Specification to EN 62208, EN 60529, IK10, EN 61439-1-2.



Assembled in the UK by Blades Power Generation Limited using parts conforming to EN60529, EN60947.

Provided with a 12-month warranty ( extended warranty available)



Products specifications
Component Manufacture ABB
IP65 All Steel Enclosure 400 High 400 Wide 200 Deep
Requirement Residential Single Phase 240v
Amp Rating AC1 45 Amp
